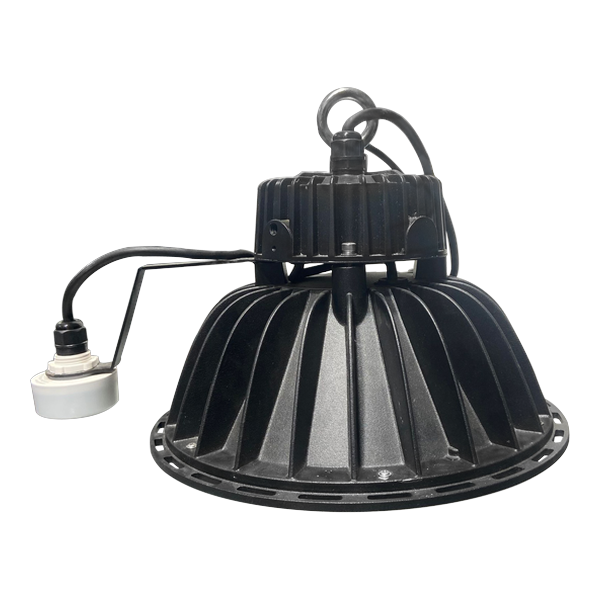

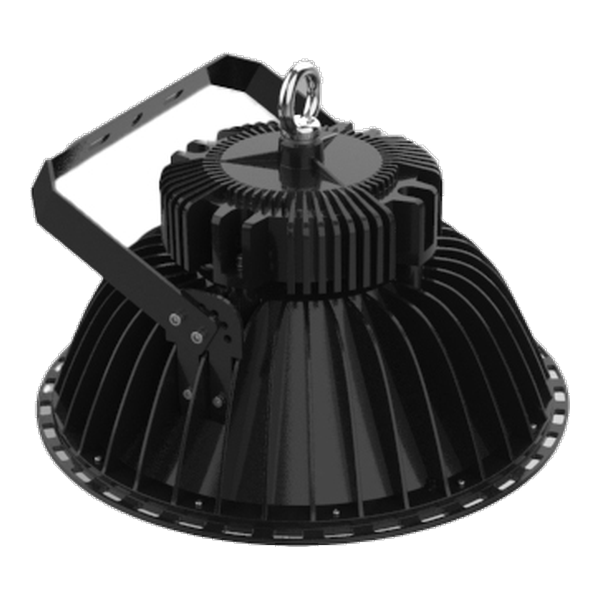

Model C-Anti-glare Industrial and Mining Lamp

The Model C anti-glare industrial high bay is an efficient, energy-saving and environmentally friendly lighting device, widely used in various scenari…

Power

100/150/200/240W

CCT

3000/4500/6500K

IP Rating

IP65-IP66

Product Introduction

The Model C anti-glare industrial high bay is an efficient, energy-saving and environmentally friendly lighting device, widely used in various scenarios. LED light beads deliver high energy efficiency and low energy consumption, significantly reducing energy consumption and operational costs. The lifespan is longer than that of traditional light sources, reducing the frequency of maintenance and replacement and lowering maintenance costs. It contains no harmful substances and is harmless to the environment, conforming to the concept of green environmental protection. LED industrial lighting fixtures adopt standard sizes and interfaces, making installation easy without special tools or skills. It is intended for industrial lighting where glare control is required.

Main Application

Mainly applied to factories, workshops, warehouses, toll stations, stadiums and places requiring large-scale lighting.

Technical Specifications

Model numberXYX-100W / XYX-150W / XYX-200W / XYX-240W
Power100W / 150W / 200W / 240W
Size280*187mm / 324*197mm / 380*209mm / 380*209mm
Input voltageAC100V-240V 50/60Hz
Lamp bead modelEMC 5050 / EMC 3030
Chip configurationCree, Philips, Osram, Nichia, Samsung
Drive power supplyMingwei, Philips, Maoshuo, Infineon, Xinzhaoyang
Power factor0.97
Colour temperature3000K / 4500K / 6500K
Colour renderingRa≥80
Protection levelIP65-IP66
Luminaire lifespan30,000 hours
Installation methodHooks, suspension rods
