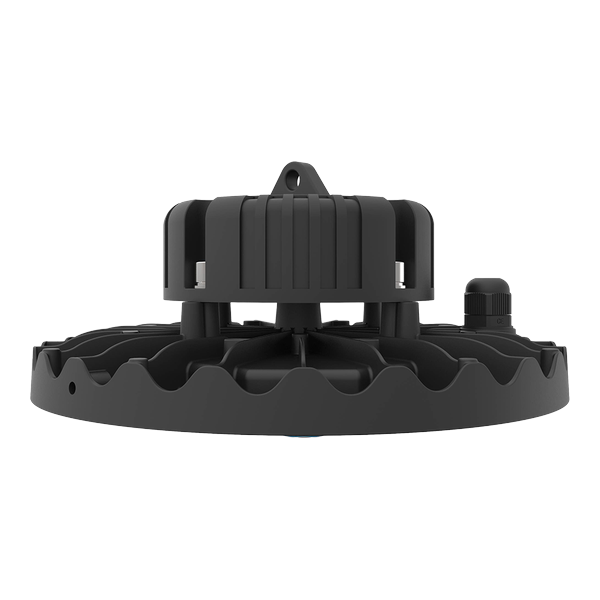

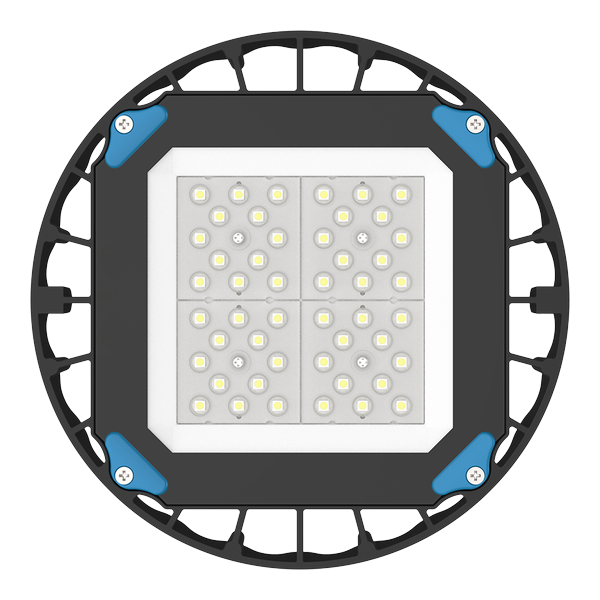

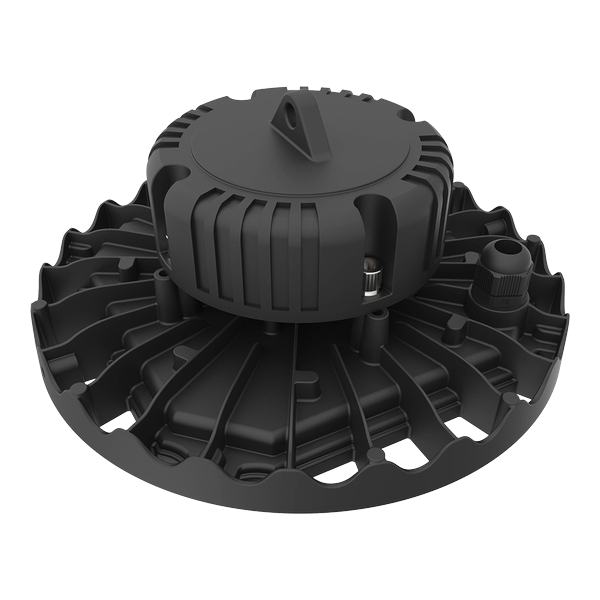

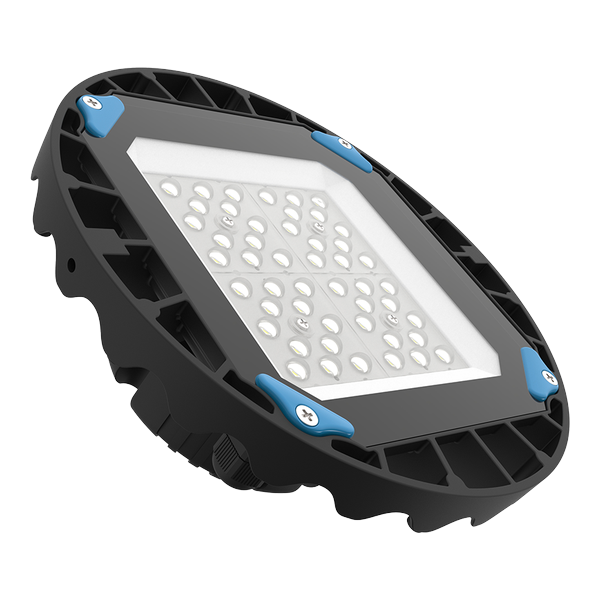

Conventional mining lamp

This conventional industrial high bay is an efficient, energy-saving and environmentally friendly lighting device, widely used in various scenarios.

Power

50/100/150/200W

Efficacy

140Lm/W

IP Rating

IP65-IP66

Product Introduction

This conventional industrial high bay is an efficient, energy-saving and environmentally friendly lighting device, widely used in various scenarios. LED light beads deliver high energy efficiency and low energy consumption, significantly reducing energy consumption and operational costs. The lifespan is longer than that of traditional light sources, reducing the frequency of maintenance and replacement and lowering maintenance costs. It contains no harmful substances and is harmless to the environment, conforming to the concept of green environmental protection. LED industrial lighting fixtures adopt standard sizes and interfaces, making installation easy without special tools or skills.

Product Features

  • Precise light distribution: Optical lens with up to 96% light transmittance delivers even, soft light; the whole luminaire reaches 140Lm/W.
  • Compact design: A clever slim structure combined with a circular driver makes the luminaire compact and neat.
  • Safe and reliable: The latest die-casting technology speeds up heat dissipation; the full lens cover over the light-emitting surface improves protection reliability.

Main Application

Mainly applied to industrial plants, warehouses, waiting/boarding halls, exhibition centres, shopping malls, supermarkets, sports venues and toll stations.

Technical Specifications

Model numberXYX-GC-50 / XYX-GC-100 / XYX-GC-150 / XYX-GC-200
Power50W / 100W / 150W / 200W
Size215*215*97mm / 290*290*153mm / 362*362*153mm / 400*400*163mm
Luminous efficiency140Lm/W
Lamp bead modelEMC 5050 / EMC 3030
Chip configurationCree, Philips, Osram, Nichia, Samsung
Drive power supplyMingwei, Philips, Maoshuo, Infineon, Xinzhaoyang
Power factor0.97
Colour temperature3000K / 4500K / 6500K
Colour renderingRa≥80
Protection levelIP65-IP66
Luminaire lifespan30,000 hours
Installation methodHooks, suspension rods
