HomeProductsflood light

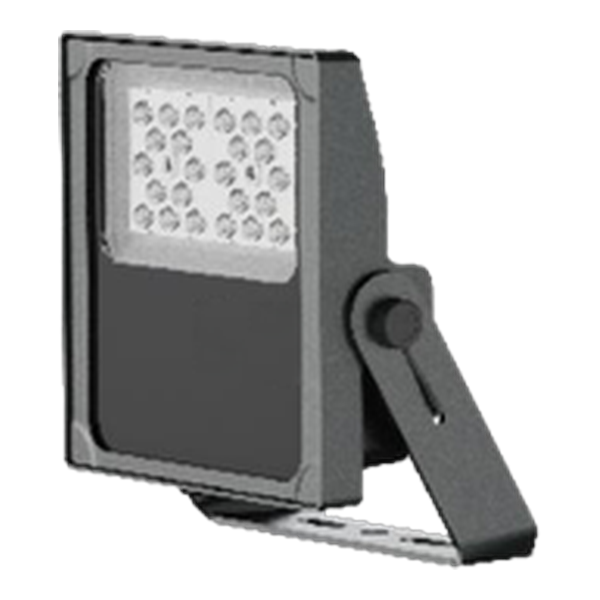

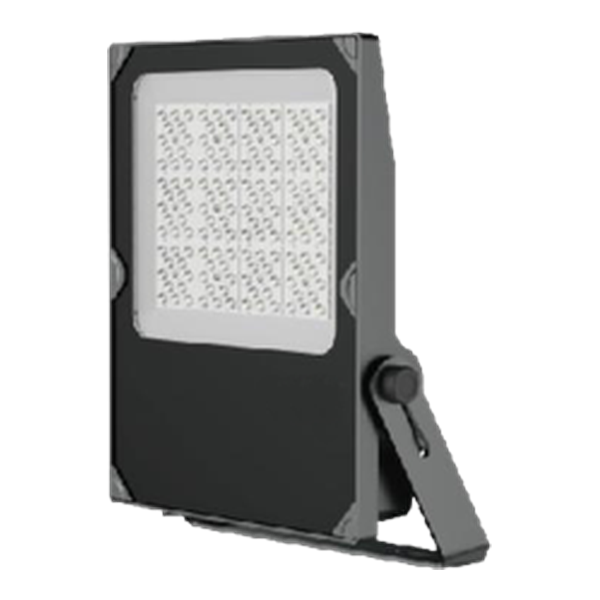

flood light

This floodlight is designed with the latest technology and is widely used in various scenarios.

Power

50-300W

Efficacy

150Lm/W

IP Rating

IP65-IP66

Product Introduction

This floodlight is designed with the latest technology and is widely used in various scenarios.

Product Features

  • High-efficiency LED: High-brightness LED chips reach international standards for luminous efficacy and service life; combined with a lens they distribute light evenly.
  • Die-cast aluminium housing: A hollowed-out heat-dissipation structure increases the heat-dissipation area, reduces light decay and extends source life.
  • Anti-glare design: The source uses a built-in anti-glare design so glare is effectively prevented while light output stays sufficient.

Main Application

Mainly used in places such as airports, stations and sports fields.

Technical Specifications

Model numberXYX-50W / XYX-100W / XYX-150W / XYX-200W / XYX-300W
Power50W / 100W / 150W / 200W / 300W
Size242*230*50mm / 326*300*61mm / 330*350*61mm / 384*361*61mm / 440*450*61mm
Input voltageAC100V-277V 50/60Hz
Drive power supplyMingwei, Philips, Maoshuo, Infineon, Xinzhaoyang
Chip configurationSMD3030 / SMD5050
Colour rendering indexCRI70 (CRI80 optional)
Luminous efficiency150Lm/W
Colour temperature3000K / 4000K / 5000K / 6000K
Lamp body materialAluminium alloy die casting
Protection levelIP65-IP66
Installation height10m-30m

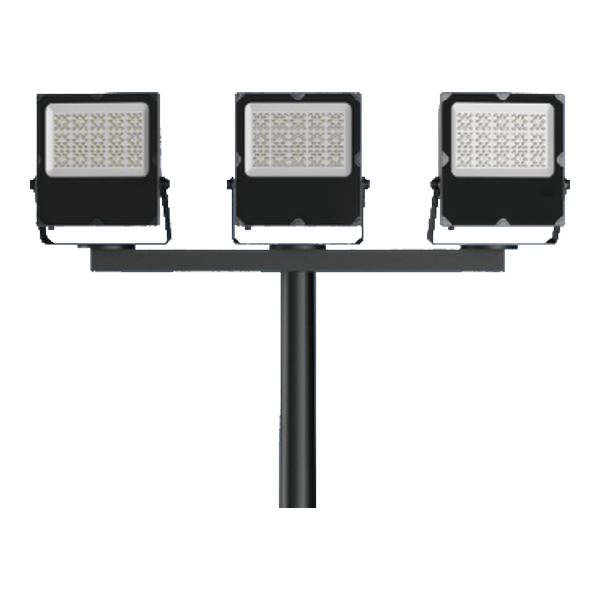

Installation methodHooks, suspension rods, wall-mounted
